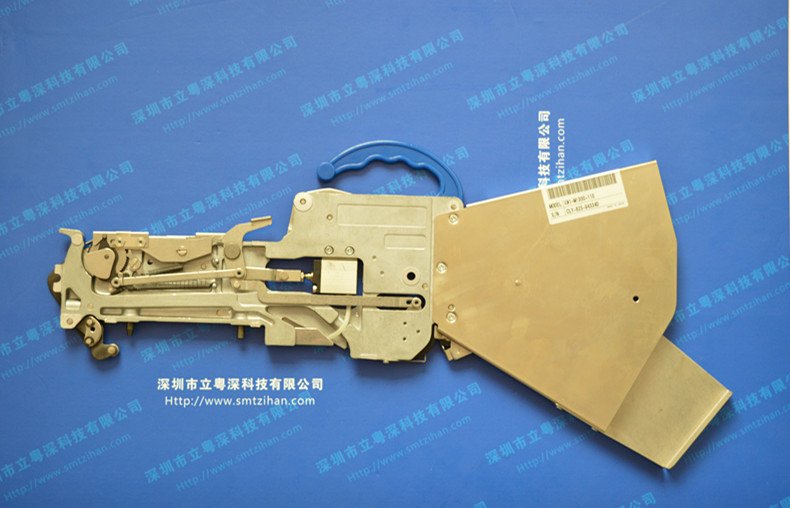

YAMAHA飞达CL8×2mm part no.KW1-M1400-00X

1 K87-M111H-20X BACK STOPPER
2 K87-M111B-00X BACK STOPPER AXIS
3 KW1-M111A-00X SPRING
4 K87-M111G-10X PUSH PIN
5 K87-M111C-00X PLANE WASHER
6 K87-M111P-00X SCREW,FLAT HEAD +
7 K87-M111D-00X PUSH PIN
8 K87-M112L-10X SPROCKET AXIS ASSY
9 KW1-M112A-00X RACKING LEVER ASSY
10 K87-M112D-10X COIL SPRING
11 KW1-M111E-00X SPRING
12 K87-M111F-10X STOPPER PIN
13 K87-M1181-00X ROD CONNECT
14 K87-M1184-00X CONNECT PIN
15 KW1-M1185-00X MULTI CYLINDER
16 KW1-M111L-00X BARB CONNECTOR
17 K87-M111M-00X GASKET
18 KW1-M11B1-00X AIR HOSE
19 K87-M11B9-00X CIRCLIP E
20 KW1-M11BL-00X BOLT,HEX SOCKET HEAD
21 KW1-M11BM-00X SPRING LOCK WAHSER
22 KW1-M114A-00X HAND LEVER ASSY
23 KW1-M116K-00X LEVER AXIS
24 KW1-M1177-00X MAIN ARM
25 K87-M111C-00X PLANE WASHER
26 K87-M11BF-00X SCREW,FLAT HEAD +IB
27 KW1-M114N-00X GUIDE AXIS
28 K87-M111R-00X SCREW,SET
29 K87-M111T-00X SCREW,SET
30 K87-M1120-10X SPROCKET ASSY
31 KW1-M1140-00X TAPE GUIDE ASSY
1 KW1-M1110-00X BODY ASSY
2 KW1-M1112-00X KNOCK PIN
3 KW1-M1113-00X KNOCK PIN
4 K87-M1115-00X CIRCULAR RIVET
5 KW1-M1150-00X HANDLE LEVER ASSY
6 KW1-M116F-00X LEVER AXIS PIN
7 KW1-M115D-00X GUIDE PIN ASSY
8 KW1-M116D-00X TENSION LEVER ASSY
9 KW1-M116F-00X LEVER AXIS PIN
10 K87-M1115-00X CIRCULAR RIVET
11 KW1-M1131-00X CLAMP LEVER UNIT
12 KW1-M1132-00X CLAMP LEVER ASSY
13 K87-M113A-00X CLANK ARM ASSY
14 K87-M113D-00X ARM
15 K87-M113E-00X HINGE PIN 2
16 K87-M11D7-00X CIRCLIP E
17 K87-M113L-10X CLAMP LEVER AXIS
18 K87-M113M-00X AXIS PIN
19 K87-M113H-00X PUSH PIN
20 K87-M111V-00X SCREW,SET
21 K87-M111R-00X SCREW,SET
22 KW1-M114L-00X COVER
23 KW1-M111T-00X SCREW,THIN HEAD
24 KW1-M116J-00X METAL SHAFT
25 K87-M11BA-00X SCREW,FLAT HEAD +
26 KW1-M1191-00X DRIVE ROLLER UNIT
27 KW1-M1192-00X INDENTATION LVR ASSY
28 KW1-M119F-00X DRIVE ROLLER ASSY
29 K87-M117B-00X PLANE WASHER
30 K87-M11BB-00X SCREW,FLAT HEAD + IB
31 KW1-M119K-00X SPRING
32 KW1-M119L-00X IDLE ROLLER ASSY
33 KW1-M119R-00X COLLAR
34 K87-M21BB-00X SCREW,TRUSS HEAD
35 KW1-M119P-00X SPRING
36 KW1-M11A1-00X LOWER GUIDE PLATE R
37 K87-M53BS-00X SCREW,PAN HEAD +
38 KW1-M11A3-00X LOWER GUIDE PLATE L
39 K87-M111N-00X SCREW,PAN HEAD +
40 KW1-M115L-00X HOLD ARM
41 KW1-M115M-00X ARM AXIS
